Shape & Size	Flat, square tips, 50 µm tall, mounted on 0.047" coax.
Contact Area by Pitch	Pitch ≤ 250 µm → Contact area ≈ 40×40 µm
-	Pitch 275–600 µm → Contact area ≈ 75×75 µm
-	Pitch 625–3000 µm → Contact area ≈ 150×150 µm
Durability	Contact area remains consistent (e.g., 40×40 µm) even as tips wear.
Optional Sizes	25×25 µm also available.
본사 홈페이지	https://ggb.com/

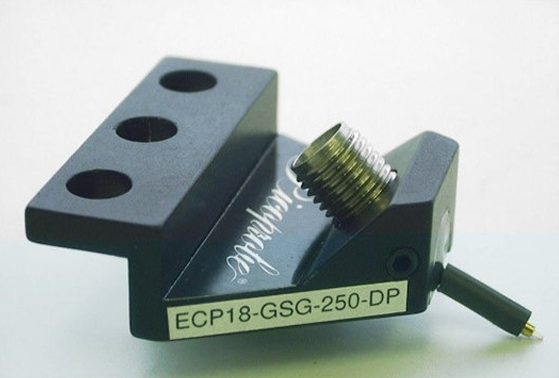

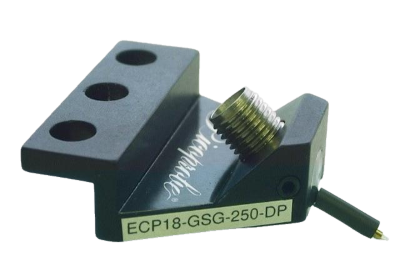

GGB-ECP series probe

The ECP probes are great for testing devices that have large pads or bumps, such as PCB's or BGA's, and for devices that non-planar surfaces.

The Model ECP18 and Model ECP40 Picoprobes have independently mobing BeCu tips-the groud tips and the signal tip move up and down on the Z-axis

independent of each other.

Features

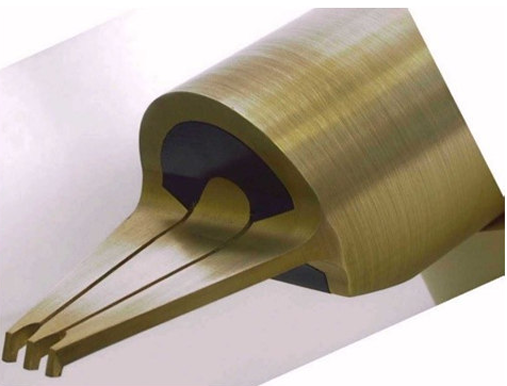

• The tips are flat and square and look like 50um tall posts hanging off the 0.047" coax.

• For any pitch up to 250um, the contact area of each tip is approximately 40x40um;

• 75x75um for any pitch from 275um to 600um; and 150x150um for any pitch from 625um to 3000um.

• As the tips wear from use, the size of the contact area (ie: 40x40um) remains the same

• 25 x 25 µm is also available.

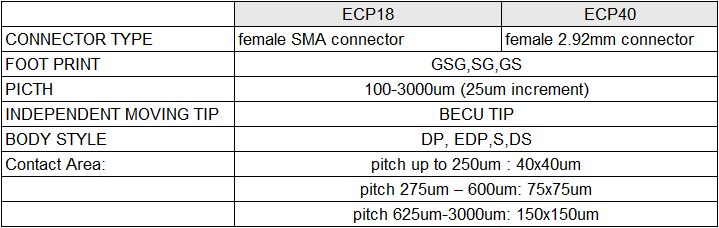

Specification
