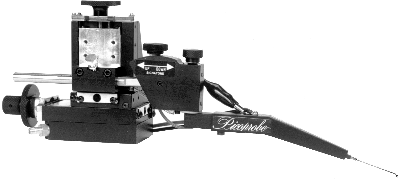

GGB-Probes Model 12C HIT EVENT

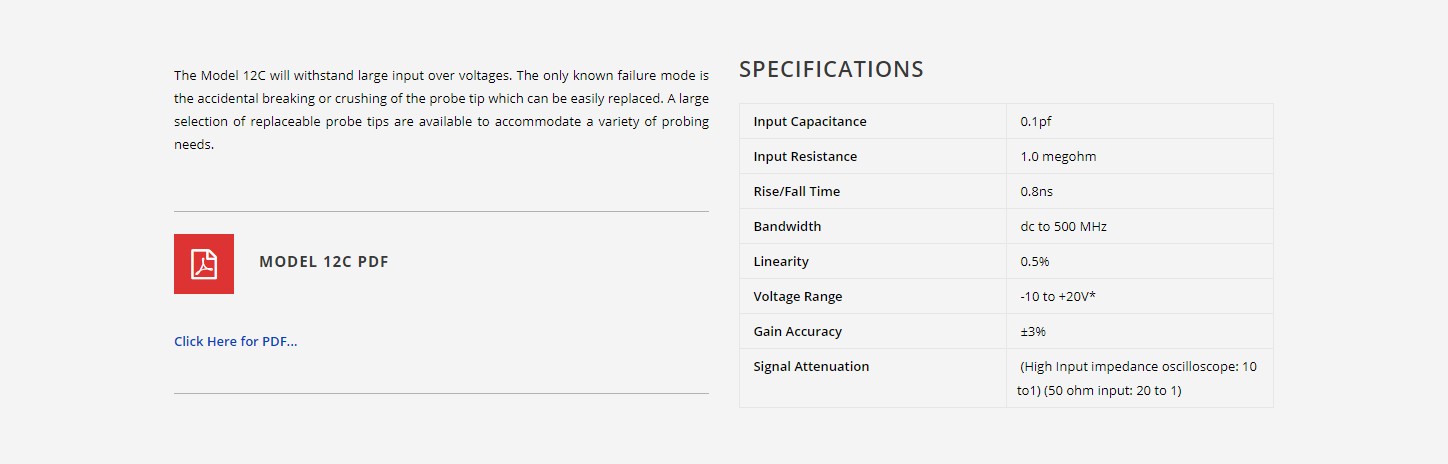

| Input Capacitance : |
0.1pf |
| Input Resistance : |
1.0 megohm |
| Rise/Fall Time : |
0.8ns |
| Bandwidth : |
dc to 500 MHz |
| Linearity : |
0.5% |
| Voltage Range : |
-10 to +20V* |
| Gain Accuracy : |
±3% |
| Signal Attenuation : |
(High Input impedance oscilloscope: 10 to1) (50 ohm input: 20 to 1) |
|
